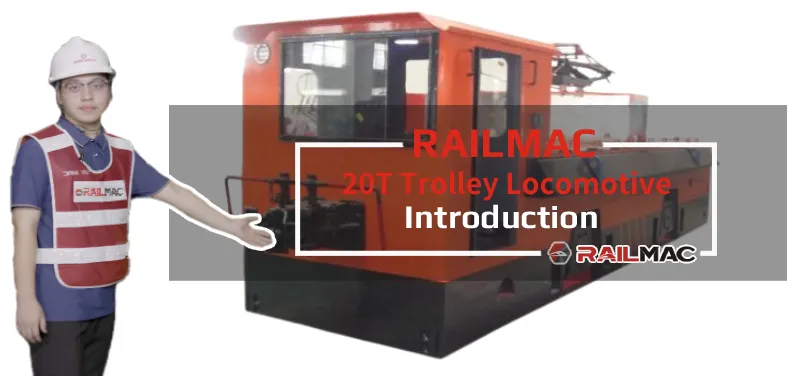

RailMac 20T Trolley Locomotive
The 20T Trolley Locomotive is a heavy – duty solution for industrial rail transport. Its frame, made of welded steel, is suspended by leaf springs or rubber studs on grease – bearing seats with tapered roller bearings. It features a high – reliability electronic speed controller. AC converters transform the DC from the trolley line into AC, precisely adjusting the speed of 3 – phase brushless AC motors, which range from 65 kW×2 to 110 kW×2. With pneumatic brakes, a sanding system, and spring – buffered bumpers, it ensures safety and stability. Capable of supporting track gauges of 600, 762, or 900mm, and with a maximum traction of up to 52.9 kN, it is well – suited for shunting and short – distance freight tasks in coal, metallurgy, and other industrial sectors, delivering reliable and efficient performance.
The company provides customers with comprehensive life cycle services, from design to power system supply, installation and commissioning, to after-sales service, training, and spare parts supply, as well as troubleshooting and overhaul technical support. This full range of services ensures that customer equipment maintains high reliability and long-term operating efficiency during use.
We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from troubleshooting to overhaul technical support.
Advantages of 20T Trolley Locomotive
-
Engineered with dual high-torque motors (65–110kW) and 550V/750V voltage systems, this locomotive delivers industry-leading traction up to 52.9 kN at speeds of 10.5–18.6 km/h, enabling efficient transport of ultra-heavy loads in mining and industrial applications.
-
Features maintenance-free 3-phase AC motors (eliminating carbon brushes/quick-wear parts) with IGBT or frequency-converter speed control, reducing operational costs by 40% while enabling seamless stepless acceleration and regenerative braking capabilities.
-
Constructed with a welded steel frame, tapered roller bearings, and leaf spring/rubber suspension to withstand 20-ton loads, while dual spring-buffered motor mounts and shock absorbers ensure component protection in high-impact environments.
Technical Specifications
| Train Model： |
20T Trolley Locomotive |
| Adhesive Weight: | 20 tons |
| Track Gauge: | 600,762,900 mm |
| Hourly System Traction: | 37.3~41.04 kN |
| Max. Traction: | 49~52.9 kN |
| Hourly System Speed: | 10.5~18.6 km/h |
| Supply Voltage: | 550~750 V |
| Power of Electric Motor: | 65 kW*2 or 75 kw*2 or 78 kw*2 or 85 kw*2 or 110 kw*2 |
Trolley Locomotive
RailMac Trolley Locomotive obtains electrical energy through a pantograph or current collector and drives the electric traction motors. These are commonly used on electrified railway lines, including urban rail transit and mainline railways. Since their power comes from an external electric grid, they have strong tractive effort and high operating speeds.
Tourist Train
The CRRC Zhuzhou 1435 series dual rail sightseeing car inherits the technological DNA of CRRC high-speed rail and is designed for in-depth sightseeing in scenic areas. The innovative double-decker structure features a panoramic window on the first floor for comfortable all-weather sightseeing and an open-top layout on the second floor for a 360° immersive natural experience.
Traction System
CHSR's CHSR™ CC750 air-cooled converter is a highly integrated traction and auxiliary "two-in-one" core equipment. It condenses key power conversion functions into a single compact enclosure, providing robust and stable power for intercity trains through standardized modular design, intelligent air cooling (IP65 protection), and mature and reliable components.
Bogie and Braking System
CRRC Braking Systems Co., Ltd.'s disc brake calipers use hydraulic or pneumatic-hydraulic conversion drive technology.They integrate automatic gap adjustment, modular caliper body, and three-point floating suspension design to ensure precise contact between brake pads and discs.
Track Body Components
RailMac provides railway solutions, focusing on one-stop Lince/Huanji wiper services (R&D, production, maintenance) plus rail air conditioning. It offers diverse wipers (DC110V/74V/24V, pneumatic) and developed China’s first IP-owned CRH3 EMU wiper, with products batch-loaded in CRH380/CR400BF/CR300BF.
Maintenance Equipment
RunWell is a high-tech enterprise specializing in the fields of rail transit and military industry. Its car lift machine products integrate German drive technology (such as the Demag three-in-one modular system) with intelligent control, supporting heavy-duty conditions of over 150 tons.
Railway Components
CRRC specializes in innovative environmental protection sanitation systems. Products like vacuum water - saving toilet modules and waterless ecological toilets, made in an orderly factory, are applied in railways, public facilities, and outdoor scenarios.
RailMac
Partnering with global leaders, RailMac offers superior railway equipment and solutions at competitive prices. It hit milestones like Thailand’s 2017 first local train, pioneered SEA new energy trains, and joined Russia’s high-speed rail project, boosting its railway industry presence.
Train Model |
Adhesive Weight |
Track Gauge |
Hourly System Traction |
Max. Traction |
Hourly System Speed |
Supply Voltage |
Power of Electric Motor |
| 1.5T Trolley Locomotive | 1.5 tons | 600,762,900mm | 2.55~3.24kN | 3.68kN | 4.45~6.6km/h | 100~250V | 3.5kW*1 or 6.5kw*1 |
| 3T Trolley Locomotive | 3 tons | 600,762,900mm | 7.5~10.6kN | 7.36kN | 7.5~10.6km/h | 250~550V | 12kw*1 or 24kw*1 or 6.5kw*2 |
| 7T Trolley Locomotive | 7 tons | 600,762,900mm | 13.05~15.16kN | 17.2~18.2kN | 9.8~11km/h | 250~550V | 21kW*2 or 22kw*2 or 24kw*2 |
| 10T Trolley Locomotive | 10 tons | 600,762,900mm | 13.05~19.13kN | 24.5~26kN | 9.8~11km/h | 250~550V | 21kW*2 or 22kw*2 or 24kw*2 or 30kw*2 |
| 14T Trolley Locomotive | 14 tons | 600,762,900mm | 26.68~27.16kN | 34.3~36.4kN | 11.2~12.87km/h | 250~550V | 45kW*2 or 52kw*2 |
| 20T Trolley Locomotive | 20 tons | 600,762,900mm | 37.3~41.04kN | 49~52.9kN | 10.5~18.6km/h | 550~750V | 65kW*2 or 75kw*2 or 78kw*2 or 85kw*2 or 110kw*2 |
| 30T Trolley Locomotive | 30 tons | 762,900mm | 43~60kN | 72~78kN | 12.73~13.2km/h | 550V | 85kW*2 or 110kw*2 |
| ——END—— | |||||||
General Information of RailMac 20T Trolley Locomotive |
|||
| Model Name | 20T Trolley Locomotive | Adhesive Weight | 20 tons |
| Track Gauge | 600, 762 or 900 mm | Hourly System Traction | 39.23, 37.3 or 40.6, 41.04 or 39.2 kN |
| Max. Traction | 49 or 52 or 52.9 kN | Hourly System Speed | 15, 14.4 or 10.5, 12.5 or 18.6 km/h |
| Min. Turning Radius | 12, 25 or30 m | Voltage | 550 or 750 V |
| Power of Electric Motor | 85 kW*2, 78 kW*2 or 65 kW*2, 75 kW*2 or 110 kW*2 | Length | 7100 or 7400 / 7500 mm |
| Width | 1600 or 1750 / 2300 mm | Height | 1900 or 3340 mm |
| Wheelbase | 2200 or 2500 / 3000 mm | Wheel Diameter | Φ840 mm |
| Height of Pantograph | 2000~3200 or 4050~4500 mm | Height of Traction | 320/430 or 430 mm |
| Speed Regulating Mode | Resistance or IGBT, AC Converter | Braking Mode | Mechanical, Electric and Air Brake |
| ——END—— | |||
Coming soon…
Coming soon…
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
