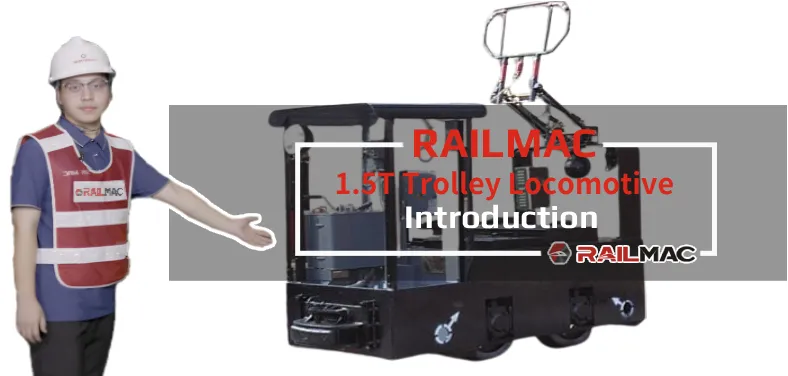

RailMac 1.5T Trolley Locomotive
The 1.5T Trolley Locomotive features a welded – steel frame suspended by springs on grease – bearing seats. It uses an electronic speed controller for continuous, stepless speed regulation. Equipped with a mechanical drum brake and sanding system, plus spring – buffered bumpers, it supports 600/762/900mm track gauges. Powered by a 3.5kW or 6.5kW electric motor (100V or 250V), it offers hourly traction up to 3.24kN and max traction of 3.68kN. With resistance or IGBT speed regulation and mechanical braking, this compact locomotive is ideal for shunting and short – distance freight in coal, metallurgy, and similar industries, ensuring reliable performance in narrow – gauge rail operations.
The company provides customers with comprehensive life cycle services, from design to power system supply, installation and commissioning, to after-sales service, training, and spare parts supply, as well as troubleshooting and overhaul technical support. This full range of services ensures that customer equipment maintains high reliability and long-term operating efficiency during use.
We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from troubleshooting to overhaul technical support.
Advantages of 1.5T Trolley Locomotive
-
The locomotive features a versatile electric drive system offering dual power options (3.5kW-1 and 6.5kW-1 motors) with either 100V or 250V operating voltage, delivering substantial traction force (up to 3.68M maximum) for its compact 1.5-ton size while incorporating advanced speed regulation through either resistance or IGBT control technology that enables continuous stepless speed adjustment between 4.84-6.64 km/h operational ranges for precise material handling applications.
-
Built on a welded steel frame with spring suspension mounted on tapered roller bearings, the locomotive combines mechanical drum braking with a rail sanding system and dual spring-dampened buffers to create a durable yet lightweight platform that ensures safe operation and effective shock absorption in various industrial environments despite its compact footprint.
-
Designed for efficient material transport in space-constrained environments, this compact trolley locomotive offers flexible traction height options (210-320mm) and multiple width configurations to accommodate various loading scenarios, making it ideal for light industrial applications, warehouse operations, and small-scale manufacturing facilities where space efficiency and maneuverability are critical requirements.
Technical Specifications
| Train Model： |
1.5T Trolley Locomotive |
| Adhesive Weight: | 1.5 tons |
| Track Gauge: | 600,762,900 mm |
| Hourly System Traction: | 2.55~3.24 kN |
| Max. Traction: | 3.68 kN |
| Hourly System Speed: | 4.45~6.6 km/h |
| Supply Voltage: | 100~250 V |
| Power of Electric Motor: | 3.5 kW*1 or 6.5 kw*1 |
Trolley Locomotive
RailMac Trolley Locomotive obtains electrical energy through a pantograph or current collector and drives the electric traction motors. These are commonly used on electrified railway lines, including urban rail transit and mainline railways. Since their power comes from an external electric grid, they have strong tractive effort and high operating speeds.
Tourist Train
The CRRC Zhuzhou 1435 series dual rail sightseeing car inherits the technological DNA of CRRC high-speed rail and is designed for in-depth sightseeing in scenic areas. The innovative double-decker structure features a panoramic window on the first floor for comfortable all-weather sightseeing and an open-top layout on the second floor for a 360° immersive natural experience.
Traction System
CHSR's CHSR™ CC750 air-cooled converter is a highly integrated traction and auxiliary "two-in-one" core equipment. It condenses key power conversion functions into a single compact enclosure, providing robust and stable power for intercity trains through standardized modular design, intelligent air cooling (IP65 protection), and mature and reliable components.
Bogie and Braking System
CRRC Braking Systems Co., Ltd.'s disc brake calipers use hydraulic or pneumatic-hydraulic conversion drive technology.They integrate automatic gap adjustment, modular caliper body, and three-point floating suspension design to ensure precise contact between brake pads and discs.
Track Body Components
RailMac provides railway solutions, focusing on one-stop Lince/Huanji wiper services (R&D, production, maintenance) plus rail air conditioning. It offers diverse wipers (DC110V/74V/24V, pneumatic) and developed China’s first IP-owned CRH3 EMU wiper, with products batch-loaded in CRH380/CR400BF/CR300BF.
Maintenance Equipment
RunWell is a high-tech enterprise specializing in the fields of rail transit and military industry. Its car lift machine products integrate German drive technology (such as the Demag three-in-one modular system) with intelligent control, supporting heavy-duty conditions of over 150 tons.
Railway Components
CRRC specializes in innovative environmental protection sanitation systems. Products like vacuum water - saving toilet modules and waterless ecological toilets, made in an orderly factory, are applied in railways, public facilities, and outdoor scenarios.
RailMac
Partnering with global leaders, RailMac offers superior railway equipment and solutions at competitive prices. It hit milestones like Thailand’s 2017 first local train, pioneered SEA new energy trains, and joined Russia’s high-speed rail project, boosting its railway industry presence.
Train Model |
Adhesive Weight |
Track Gauge |
Hourly System Traction |
Max. Traction |
Hourly System Speed |
Supply Voltage |
Power of Electric Motor |
| 1.5T Trolley Locomotive | 1.5 tons | 600,762,900mm | 2.55~3.24kN | 3.68kN | 4.45~6.6km/h | 100~250V | 3.5kW*1 or 6.5kw*1 |
| 3T Trolley Locomotive | 3 tons | 600,762,900mm | 7.5~10.6kN | 7.36kN | 7.5~10.6km/h | 250~550V | 12kw*1 or 24kw*1 or 6.5kw*2 |
| 7T Trolley Locomotive | 7 tons | 600,762,900mm | 13.05~15.16kN | 17.2~18.2kN | 9.8~11km/h | 250~550V | 21kW*2 or 22kw*2 or 24kw*2 |
| 10T Trolley Locomotive | 10 tons | 600,762,900mm | 13.05~19.13kN | 24.5~26kN | 9.8~11km/h | 250~550V | 21kW*2 or 22kw*2 or 24kw*2 or 30kw*2 |
| 14T Trolley Locomotive | 14 tons | 600,762,900mm | 26.68~27.16kN | 34.3~36.4kN | 11.2~12.87km/h | 250~550V | 45kW*2 or 52kw*2 |
| 20T Trolley Locomotive | 20 tons | 600,762,900mm | 37.3~41.04kN | 49~52.9kN | 10.5~18.6km/h | 550~750V | 65kW*2 or 75kw*2 or 78kw*2 or 85kw*2 or 110kw*2 |
| 30T Trolley Locomotive | 30 tons | 762,900mm | 43~60kN | 72~78kN | 12.73~13.2km/h | 550V | 85kW*2 or 110kw*2 |
| ——END—— | |||||||
General Information of RailMac 1.5T Trolley Locomotive |
|||
| Model Name | 1.5T Trolley Locomotive | Adhesive Weight | 1.5 tons |
| Track Gauge | 600, 762 or 900 mm | Hourly System Traction | 2.55 or 3.24 kN |
| Max. Traction | 3.68 kN | Hourly System Speed | 4.54 or 6.6 km/h |
| Min. Turning Radius | 5 m | Voltage | 100 or 250 V |
| Power of Electric Motor | 3.5 kW×1 or 6.5 kW*1 | Length | 2340 or 2370mm |
| Width | 950 or 1100mm, 914, 1076 or 1214 mm | Height | 1550 mm |
| Wheelbase | 650mm | Wheel Diameter | Φ460mm |
| Height of Pantograph | 1600~2000 mm or 1800~2200 mm | Height of Traction | 320 mm, 210 or 320 mm |
| Speed Regulating Mode | Resistance or IGBT | Braking Mode | Mechanical Brake |
| ——END—— | |||
Coming soon…
Coming soon…
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
